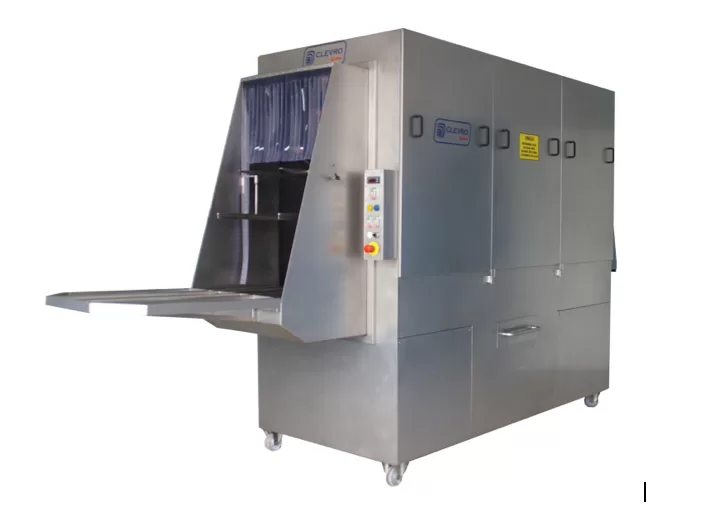

Container tunnel washer XMP-2280

Construction - stainless steel - stainless steel pumps - easy access to the inside of the machine Control: standard: analogue (switches) Conveyor: stainless steel chain with automatic pitch control Washing system: - closed water circulation system - the washing section is made up of calibrated plastic nozzles - from above and below along the whole washing section Loading and unloading: manual as standard Staff: standard: min. 2 people Filtration system: standard: drawer type, 2 mm mesh Drying system: none Output: from 90 to 180 containers/h Electrical: main wash pump 9.2 kW heating elements: 2 x 7.5 kW (if electric) conveyor: 0.37 kW Water heating: standard: electric or steam Water temperature for washing: from 20 °C to 60 °C Number of nozzles: washing section - 66 pcs. Rinsing section - 25 pcs. Working pressure: 5 bar for washing For rinsing, as in the supply pipework Chemical dosing system: automatic with concentration control Ventilation: extraction outlet, 250 mm pipe Washing tank volume: 250 l Water: 2 x 3/4", min. 3 bar, max 6 bar (warm, at least 45 °C, is best) Water consumption: from 5 to 10 l per container Voltage: 3x400(380) V Dimensions (length/width/height): 3660/1229/2210 mm
